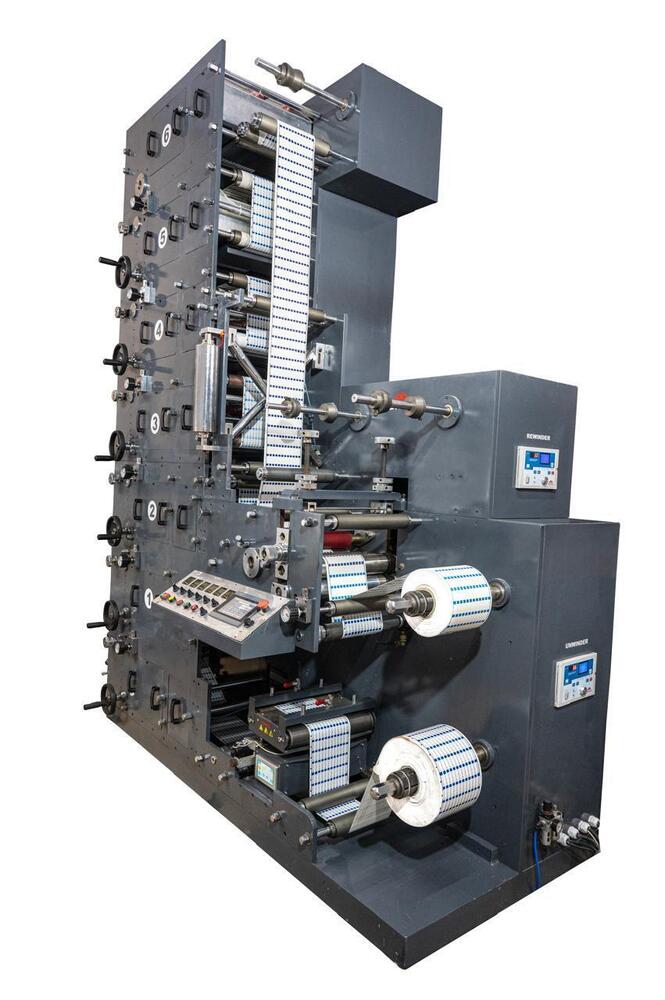

Staked tip flexo printing machine

Name: Staked tip flexo printing machine
Brand: MOKSHA ENGINEERING WORKS
Price: 8000000 INR
Availability: InStock

Price 8000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Staked tip flexo printing machine Specification

Type
Staked tip flexo printing machine

Material
Stainless steel and industrial-grade alloys

Capacity
High-volume continuous operation

Printing Speed
100-150 m/min

Computerized
Yes

Automatic Grade
Automatic

Plate Type
Photopolymer plate

Print Direction
Both sides

Ink Type
Water-based and solvent-based ink compatible

Color Management
Multi-color (up to 8 colors)

Control System
PLC control with touchscreen interface

Working Temperature
5C - 40C

Power
18 kW

Size
Large format

Width
Up to 1200 mm

Weight (kg)
3200 kg

Dimension (L*W*H)
5800 mm x 2200 mm x 2400 mm

Tension Control
Automatic tension control

Registration Accuracy
0.15 mm

Air Supply
0.6 MPa

Drying System
Hot air and infrared drying units

Max Roll Diameter
1000 mm

Substrate Thickness Range
20-200 microns

Unwinding/Rewinding
Hydraulic auto-loading

Web Guide System
Automatic web guiding

Application
Suitable for paper, film, foil, and label materials

Noise Level
78 dB(A)

Staked tip flexo printing machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
ALL india and export

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Main Export Market(s)
Asia

Main Domestic Market
All India

About Staked tip flexo printing machine

Stacked flexographic flexo printing machines with five color lines often referred to as 5-color stack type are high-efficiency systems designed to print multiple colors or layers on a single substrate in a vertically arranged configuration.

Innovative Drying and Printing Efficiency

Equipped with both hot air and infrared drying units, this flexo printing machine delivers superior drying performance and allows for high-speed continuous operation. The advanced tension control and auto web guide ensure consistent print registration and optimal material handling, supporting substrates such as paper, film, labels, and foil up to 1200 mm in width.

Automated Control and Superior Precision

The system features a PLC-controlled touchscreen interface for easy operation, precise tracking, and high registration accuracy of 0.15 mm. Automatic hydraulic loading/unloading of rolls, along with computerized tension management, minimizes downtime and ensures smooth process flow, making it ideal for large-scale, industrial printing environments.

FAQ's of Staked tip flexo printing machine:

Q: How does the drying system enhance printing quality and efficiency?

A: The staked tip flexo printing machine utilizes hot air and infrared drying units, enabling rapid and thorough drying of both water-based and solvent-based inks. This dual-system approach minimizes drying times, prevents smudging, and maintains high production speeds, ensuring superior print quality and increased operational efficiency.

Q: What types of materials are compatible with this machine?

A: This flexo press can handle a wide variety of substrates, including paper, film, foil, and label materials with thicknesses ranging from 20 to 200 microns. Its flexibility makes it suitable for packaging, labeling, and other industrial printing applications.

Q: When should the machine's PLC and touchscreen control systems be used?

A: The PLC control system with a touchscreen interface is used throughout all stages of the printing process for setting parameters, monitoring system performance, and adjusting operations. It simplifies workflow, increases accuracy, and allows operators to efficiently manage multi-color and double-sided printing tasks.

Q: Where is this flexo printing machine typically installed?

A: Given its large size and high-capacity output, the machine is designed for installation in industrial environments such as printing plants, packaging facilities, and converting operations. It is suitable for manufacturers, suppliers, and exporters seeking high-speed, precise, and continuous production.

Q: What is the benefit of automatic web guiding and hydraulic auto-loading?

A: The automatic web guiding system ensures consistent material alignment, reducing waste from misregistration. Hydraulic auto-loading of unwind/rewind rolls streamlines job changes and minimizes manual intervention, boosting productivity and user safety.

Q: How does the machine maintain tension and registration accuracy during operation?

A: The printer employs automatic tension control and advanced registration systems, achieving accuracy up to 0.15 mm. These features prevent material distortion and ensure high-quality, consistent output, even at maximum operational speeds.

Q: Can the machine operate continuously at high volumes, and what is its noise level?

A: Yes, the machine is engineered for high-volume continuous operation, supported by robust stainless steel construction and industrial-grade alloys. It operates at a noise level of 78 dB(A), which is suitable for busy industrial environments.
