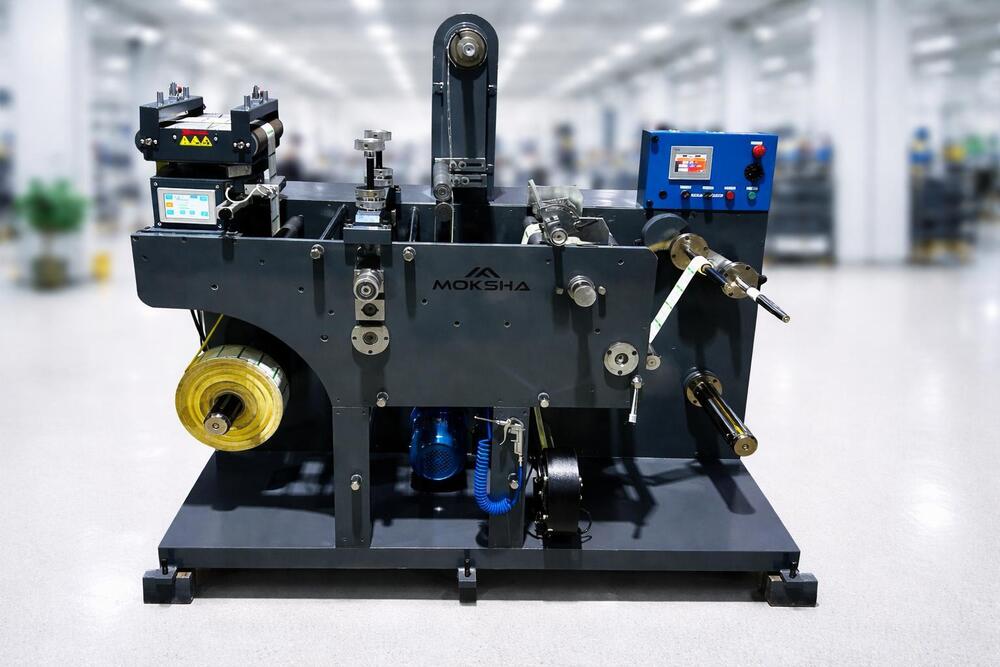

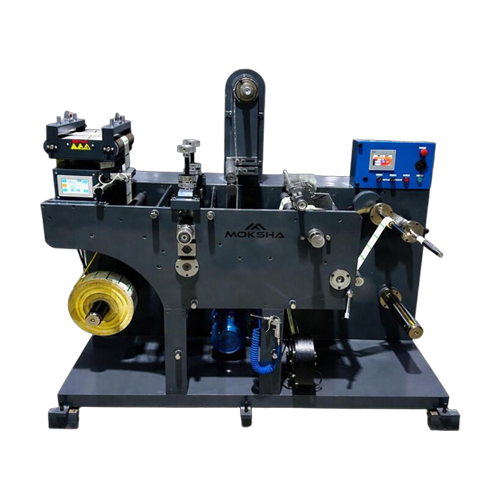

Rotary die cutting machine

Name: Rotary die cutting machine
Brand: MOKSHA ENGINEERING WORKS
Price: 650000 INR
Availability: InStock

Price 650000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Rotary die cutting machine Specification

Drive Motor
AC Servo Motor

Product Type
Industrial cutting machine

General Use
Mass production of die cut products

Material
Paper, cardboard, plastic, adhesive labels

Type
Other

Capacity
100 meter|min Pcs/min

Weight (kg)
1500 kg Kilograms (kg)

Computerized
No

Automatic
Yes

Cutting Speed
80-120 cycles/min m/m

Cutting Thickness
Up to 5 mm Millimeter (mm)

Cutting Function
Die cutting, creasing, perforating

Cooling System
Air cooled

Drive Type
Electric motor driven

Voltage
220V/380V, 50/60Hz Volt (v)

Dimension (L*W*H)
2300 mm x 1200 mm x 1600 mm Millimeter (mm)

Feature
Other

Color
Grey & Blue

Motor
3.5 kW main drive motor

Mechanical Precision
0.1 mm

Software Detail
Compatible with proprietary rotary die cutting control software

Cutting Method
Rotary Die Cutting

Control System
Integrated PLC with HMI

Cutting Area
500 mm x 430 mm Square Millimeter (mm2)

Cutting Material
Adhesive labels

Lubrication System
Automatic lubrication

Noise Level
<75 dB

Operating Humidity
20% - 80% RH (non-condensing)

Feeding System
Automatic web feeding

Max Sheet Width
430 mm

Power Consumption
4.5 kW

Safety Feature
Emergency stop, safety guards

Installation
On-site technician support available

Operating Temperature
5C - 40C

Min Sheet Length
80 mm

Rotary die cutting machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cheque, Telegraphic Transfer (T/T)

Supply Ability
40 Units Per Year

Delivery Time
60 Days

Main Export Market(s)
Asia

Main Domestic Market
All India

About Rotary die cutting machine

Rotary die cutting machine uses flexible dies for continuous, high-speed cutting of webs. Ideal for pressure sensitive labels with tight tolerances. Delivers precise shapes, perforations, and kiss-cutting at production speeds.

FAQ's of Rotary die cutting machine:

Q: How does the automatic web feeding system enhance productivity?

A: The automatic web feeding system streamlines the production process by continuously supplying material to the machine, reducing manual intervention and minimizing downtime. This leads to increased operational efficiency and higher output.

Q: What materials can be processed using this rotary die cutting machine?

A: This machine is designed for a diverse range of materials, including paper, cardboard, plastic, adhesive labels, films, and thin metal foils, making it suitable for various industrial and packaging applications.

Q: When is on-site installation and technician support available?

A: On-site technician support for installation is available upon delivery of your Rotary Die Cutting Machine, ensuring it is set up correctly and operators are trained for optimal usage right from the start.

Q: Where can this rotary die cutting machine be shipped?

A: We offer shipping to multiple regions across India and internationally, utilizing reliable goods transport and transport services to ensure your machine arrives safely and on schedule.

Q: What are the key safety features of the machine?

A: The machine includes essential safety features such as emergency stop buttons and robust safety guards, ensuring operator safety and compliance with industrial safety standards.

Q: How does using this machine benefit mass production operations?

A: Its automated, high-speed operation (80-120 cycles/min) and precision (0.1 mm) facilitate consistent, large-volume output with reduced errors and minimal manual labor, making it invaluable for industrial-scale production.
