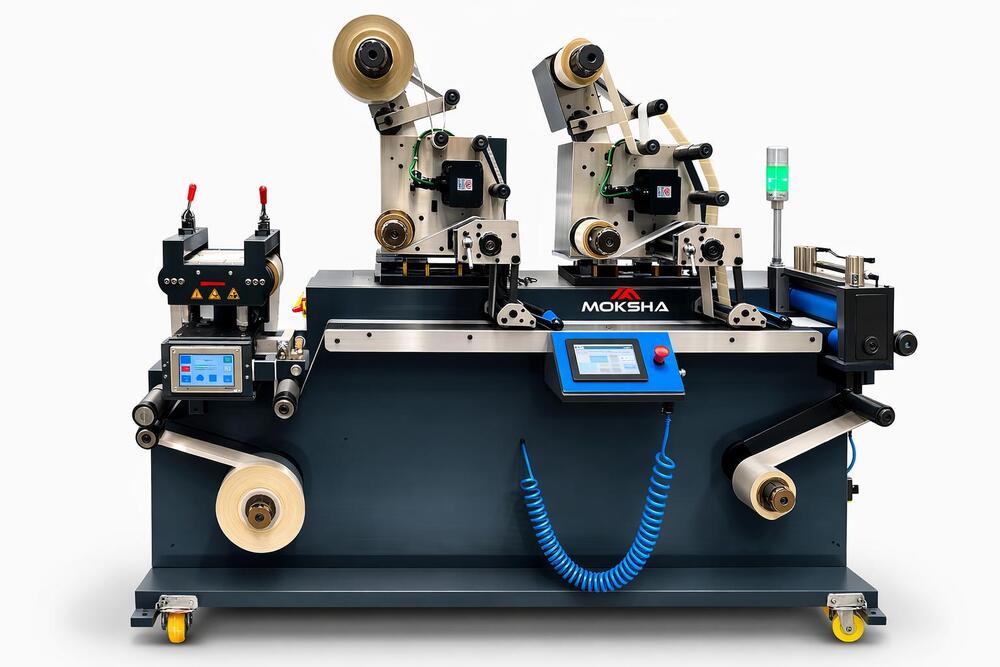

RFID insert machine

Name: RFID insert machine
Brand: MOKSHA ENGINEERING WORKS
Price: 4000000 INR
Availability: InStock

Price 4000000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

RFID insert machine Specification

Drive Motor
Servo

Product Type
RFID Insert & Die Cutting

General Use
RFID label and inlay insertion

Material
Stainless Steel & Alloy Steel

Type
Industrial RFID Insert Machine

Capacity
24/7 Operation

Weight (kg)
~600 kg

Computerized
Yes

Automatic
Fully Automatic

Cutting Speed
Up to 3000 pcs/hour

Cutting Thickness
0.1 - 2 mm

Cutting Function
Precision RFID Inlay/Label Insert Cutting

Cooling System
Air Cooling

Drive Type
Servo Motor Driven

Voltage
220V / 50Hz

Dimension (L*W*H)
1600 x 900 x 1500 mm

Feature
Automatic Feeding, High Accuracy, User-Friendly Interface

Color
Industrial Gray

Motor
High Precision Servo Motor

Mechanical Precision
0.05 mm

Software Detail
PLC Based Control System

Cutting Method
Flatbed Die Cutting

Control System
Touch Screen PLC Control

Cutting Material
Paper, PVC, PET, RF Inlay Material

Cutting Area
300 x 300 mm

Air Supply
0.6 MPa (external)

Service Support
Onsite Technical Assistance

Production Environment
Dust-Free Recommended

Operator Requirement
Single Operator

Noise Level
<65 dB

Max. Material Width
320 mm

Min. Material Width
15 mm

Power Consumption
2.5 kW

Maximum Roll Diameter
400 mm

Input Interface
USB & Network

Safety Feature
Emergency Stop, Safety Cover

Blade Size
Customizable (Depends on label size)

RFID insert machine Trade Information

Minimum Order Quantity
1 Unit

FOB Port
ALL india and export

Payment Terms
Cash Advance (CA), Cash in Advance (CID)

Main Export Market(s)
Asia

Main Domestic Market
All India

About RFID insert machine

In the context of RFID manufacturing typically refers to multi-lane production machinery capable of processing five parallel streams of RFID inlays or labels simultaneously to maximize throughput. These high-speed systems automate the insertion of RFID chips onto substrates, common in large-scale logistics and retail applications

Unmatched Cutting Accuracy and Efficiency

Delivering precision with a flatbed die-cutting method and a high-precision servo motor, this RFID insert machine achieves mechanical accuracy of up to 0.05 mm. Automatic feeding and computerized control ensure efficient, continuous operation with minimal manual intervention, making it ideal for high-volume industrial environments.

Versatile Material Handling and Customization

Compatible with multiple materials including paper, PVC, PET, and RF inlay substrates, the machine adapts easily to changing production needs. Blade sizes are customizable based on label dimensions, and the system accommodates varying material widths and thicknesses, enhancing operational flexibility for diverse RFID label and inlay requirements.

Operator Safety and User-Friendly Interface

The system prioritizes safety with an emergency stop, safety cover, and noise output below 65 dB. The intuitive touch screen PLC control allows for simple adjustments, efficient operation, and rapid troubleshooting, supporting single-operator oversight and maintaining reliable, secure workplace conditions.

FAQ's of RFID insert machine:

Q: How does the RFID insert machine achieve high-precision cutting for various materials?

A: The machine uses a flatbed die cutting method driven by a high-precision servo motor, delivering up to 0.05 mm mechanical accuracy. Customizable blades accommodate different label sizes and thicknesses, ensuring smooth and precise cuts across materials like paper, PVC, PET, and RFID inlays.

Q: What are the environmental and workspace requirements for optimal operation?

A: A dust-free production environment is recommended to maintain performance and reduce the risk of defects or interruptions. The machine also requires an external air supply of 0.6 MPa and stable voltage (220V/50Hz) for reliable operation.

Q: When is onsite technical assistance available for troubleshooting and support?

A: Onsite technical assistance is available to all customers across India, covering setup, troubleshooting, and ongoing maintenance, ensuring minimal downtime and smooth machine productivity.

Q: Where can this RFID insert machine be used, and what industries benefit most?

A: This machine is suited for industrial manufacturing facilities requiring precision RFID tag or label insertion, such as logistics, inventory management, secure identification, or supply chain applications. Exporters, manufacturers, and suppliers in India commonly deploy it for high-capacity, 24/7 operations.

Q: What is the process for loading materials and setting up the machine for a production run?

A: Materials are loaded onto rolls with a maximum diameter of 400 mm and fed automatically into the machine. Setup is streamlined via the touch screen PLC interface, where operators input material specifications and cutting parameters. Safety features like the emergency stop and safety cover ensure secure handling during setup and operation.

Q: How does the RFID insert machine benefit production efficiency and product quality?

A: The machine's automatic feeding system, servo-driven controls, and high accuracy enable continuous, high-speed production (up to 3,000 pcs/hour). This boosts productivity while reducing errors and waste, resulting in consistent quality output for demanding industrial requirements.
